Domain model in ooad examples. The quintessential object oriented analysis step is the decomposition of a domain into noteworthy concepts or objects. Note that a domain model is not a description of software objects. Object oriented analysis design ooad domain modeling introduction 1.

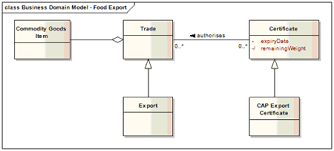

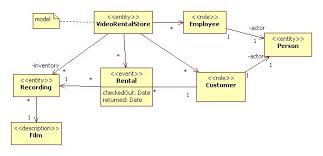

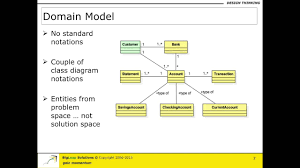

Slide 36 of 138. Examples of domains include. A domain model is a visual representation of conceptual classes or real situation objects in a domain m095 fowler96 domain models have also been called conceptual models the term used in the first edition of this book domain object models and analysis object models.

In the class circle data hiding can be incorporated by making attributes invisible from outside the class and adding two more methods to the class for. For example the education domain can be modeled by a package. A domain model is a package containing class and activity diagrams.

A domain is a collection of related concepts relationships and workflows. Include the following attributes in a domain model those for which the requirements suggest or imply a need to remember information for example a sale receipt normally includes a date and time attribute it is a named property of a class describing values held by each. It is a visualization of the concepts or mental models.

A domain model is a representation of real world conceptual classes not of software components domain modeling is a technique used to understand the project problem description and to translate the requirements of that project into software components of a solution. Ooad object model the object modelâ visualizes the elements in a software application in terms of objects. The software components are commonly implemented in an object oriented.

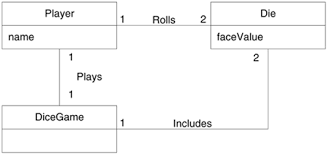

Object oriented analysis design ooad i domain modeling introduction cs577a fall 2006 developed by david klappholz stevens institute of technology supannika koolmanojwong usc center for software engineering ed colbert usc center for software engineering. This model illustrates the noteworthy concepts player die and dicegame with their associations and attributes. Figure 1 3 partial domain model of the dice game.
